People Counter App at the Edge

Details
Programming Language:	Python 3.5 or 3.6

Contents

• Demo video
• What it does
• How it works
• Requirements
• Setup
• Generating IR files
• Run the application

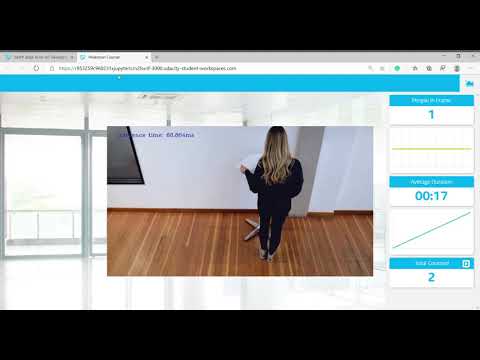

Demo video

What it coes

The people counter application will demonstrate how to create a smart video IoT solution using Intel® hardware and software tools. The app will detect people in a designated area, providing the number of people in the frame, average duration of people in frame, and total count.

How it works

The counter will use the Inference Engine included in the Intel® Distribution of OpenVINO™ Toolkit. The model used should be able to identify people in a video frame. The app should count the number of people in the current frame, the duration that a person is in the frame (time elapsed between entering and exiting a frame) and the total count of people. It then sends the data to a local web server using the Paho MQTT Python package.

Requirements

Hardware

• 6th to 10th generation Intel® Core™ processor with Iris® Pro graphics or Intel® HD Graphics.
• OR use of Intel® Neural Compute Stick 2 (NCS2)

Software

• Intel® Distribution of OpenVINO™ toolkit 2019 R3 release
• Node v6.17.1
• Npm v3.10.10
• CMake
• MQTT Mosca server

Setup

Install Intel® Distribution of OpenVINO™ toolkit

See this guide for installing openvino.

Install Nodejs and its depedencies

• This step is only required if the user previously used Chris Lea's Node.js PPA.

   sudo add-apt-repository -y -r ppa:chris-lea/node.js
   sudo rm -f /etc/apt/sources.list.d/chris-lea-node_js-*.list
   sudo rm -f /etc/apt/sources.list.d/chris-lea-node_js-*.list.save


• To install Nodejs and Npm, run the below commands:

   curl -sSL https://deb.nodesource.com/gpgkey/nodesource.gpg.key | sudo apt-key add -
   VERSION=node_6.x
   DISTRO="$(lsb_release -s -c)"
   echo "deb https://deb.nodesource.com/$VERSION $DISTRO main" | sudo tee /etc/apt/sources.list.d/nodesource.list
   echo "deb-src https://deb.nodesource.com/$VERSION $DISTRO main" | sudo tee -a /etc/apt/sources.list.d/nodesource.list
   sudo apt-get update
   sudo apt-get install nodejs


Install the following dependencies

sudo apt update
sudo apt-get install python3-pip
pip3 install numpy
pip3 install paho-mqtt
sudo apt install libzmq3-dev libkrb5-dev
sudo apt install ffmpeg

Install npm

There are three components that need to be running in separate terminals for this application to work:

• MQTT Mosca server
• Node.js* Web server
• FFmpeg server

From the main directory:

• For MQTT/Mosca server:

  cd webservice/server
  npm install


• For Web server:

  cd ../ui
  npm install


  Note: If any configuration errors occur in mosca server or Web server while using npm install, use the below commands:

  sudo npm install npm -g
  rm -rf node_modules
  npm cache clean
  npm config set registry "http://registry.npmjs.org"
  npm install


Generating IR files

Step 1

Download the pre-trained model from here

Step 2

Extract the files:-

tar -xvf ssd_mobilenet_v2_coco_2018_03_29.tar.gz

Step 3

Go to the ssd_mobilenet_v2 directory and run the following command line:-

python /opt/intel/openvino/deployment_tools/model_optimizer/mo_tf.py --input_model frozen_inference_graph.pb --tensorflow_object_detection_api_pipeline_config pipeline.config --tensorflow_use_custom_operations_config /opt/intel/openvino/deployment_tools/model_optimizer/extensions/front/tf/ssd_v2_support.json --reverse_input_channel

Step 4

Create model directory in the app directory and move the generated .xml and .bin file into created model directory.

Run the application

From the main directory:

Step 1 - Start the Mosca server

cd webservice/server/node-server
node ./server.js

You should see the following message, if successful:

Mosca server started.

Step 2 - Start the GUI

Open new terminal and run below commands.

cd webservice/ui
npm run dev

You should see the following message in the terminal.

webpack: Compiled successfully

Step 3 - FFmpeg Server

Open new terminal and run the below commands.

sudo ffserver -f ./ffmpeg/server.conf

Step 4 - Run the code

Open a new terminal to run the code.

Setup the environment

You must configure the environment to use the Intel® Distribution of OpenVINO™ toolkit one time per session by running the following command:

source /opt/intel/openvino/bin/setupvars.sh -pyver 3.5

You should also be able to run the application with Python 3.6, although newer versions of Python will not work with the app.

Running on the CPU

When running Intel® Distribution of OpenVINO™ toolkit Python applications on the CPU, the CPU extension library is required. This can be found at:

/opt/intel/openvino/deployment_tools/inference_engine/lib/intel64/

Depending on whether you are using Linux or Mac, the filename will be either libcpu_extension_sse4.so or libcpu_extension.dylib, respectively. (The Linux filename may be different if you are using a AVX architecture)

Though by default application runs on CPU, this can also be explicitly specified by -d CPU command-line argument:

python main.py -i resources/Pedestrian_Detect_2_1_1.mp4 -m your-model.xml -l /opt/intel/openvino/deployment_tools/inference_engine/lib/intel64/libcpu_extension_sse4.so -d CPU -pt 0.6 | ffmpeg -v warning -f rawvideo -pixel_format bgr24 -video_size 768x432 -framerate 24 -i - http://0.0.0.0:3004/fac.ffm

If you are in the classroom workspace, use the “Open App” button to view the output. If working locally, to see the output on a web based interface, open the link http://0.0.0.0:3004 in a browser.

Running on the Intel® Neural Compute Stick

To run on the Intel® Neural Compute Stick, use the -d MYRIAD command-line argument:

python3.5 main.py -d MYRIAD -i resources/Pedestrian_Detect_2_1_1.mp4 -m your-model.xml -pt 0.6 | ffmpeg -v warning -f rawvideo -pixel_format bgr24 -video_size 768x432 -framerate 24 -i - http://0.0.0.0:3004/fac.ffm

To see the output on a web based interface, open the link http://0.0.0.0:3004 in a browser.

Note: The Intel® Neural Compute Stick can only run FP16 models at this time. The model that is passed to the application, through the -m <path_to_model> command-line argument, must be of data type FP16.

Using a camera stream instead of a video file

To get the input video from the camera, use the -i CAM command-line argument. Specify the resolution of the camera using the -video_size command line argument.

For example:

python main.py -i CAM -m your-model.xml -l /opt/intel/openvino/deployment_tools/inference_engine/lib/intel64/libcpu_extension_sse4.so -d CPU -pt 0.6 | ffmpeg -v warning -f rawvideo -pixel_format bgr24 -video_size 768x432 -framerate 24 -i - http://0.0.0.0:3004/fac.ffm

To see the output on a web based interface, open the link http://0.0.0.0:3004 in a browser.

Note: User has to give -video_size command line argument according to the input as it is used to specify the resolution of the video or image file.

A Note on Running Locally

The servers herein are configured to utilize the Udacity classroom workspace. As such, to run on your local machine, you will need to change the below file:

webservice/ui/src/constants/constants.js

The CAMERA_FEED_SERVER and MQTT_SERVER both use the workspace configuration. You can change each of these as follows:

CAMERA_FEED_SERVER: "http://localhost:3004"
...
MQTT_SERVER: "ws://localhost:3002"
